Magnetic Lock Exit Motion Sensor 2 Doors TCP/IP Access Control System Kits Keypad Reader Control Board 110V Power Supply Box USB Enroll Reader RFID Card/Key Fob(Phone APP remotely Open Door)

Product details

Brand	MENGQI-CONTROL
Color	White
Power Source	AC
Connectivity Technology	Usb
Item Weight	2 Pounds
Voltage	110 Volts

Control 2 doors.Get in door by swiping card or PIN code, and get out door by push button or exit motion sensor( when walk close to door ). Can store/download/check entry records and generate report by professional management software.
Control of memory up to 20,000 user / up to 100,000 logs. Auto open/close at any pre-set time during any day. Support "who" can enter which door at certain time, authorized access control.Also support swipe 4 times continuously to keep door open.
Card Type: EM-ID Card .Response Speed: Less than 0.2 second.Exit button has base, easy install.Desktop USB reader,read card number into software so that easy programming/register user.600lbs Electric Magnetic Lock(280kg Force)
Have smart phone APP to open lock remotely.App operate system: iOS & Android.Desktop USB reader,read card number into software so that easy programming/register user. Detail video guide and wire diagram make all easily, you can DIY.
Network communication via TCP/IP. Software Supportable Database: Access & SQL Server. Support win7/win8/win10 both 32 and 64 bit system.

Magnetic Lock Exit Motion Sensor 2 Doors TCP/IP Access Control System Kit

$375.99

Quantity

Support phone app( android and iPhone) to remotely open lock,even you are in another city. It's secure(can set private password), easy to use.

Software supports win7/win8/win10 both 32 and 64 bit system.

We provide video guide+detail wire diagram,so you can easily setup system, also provide live technical support until all working well for you.

We only do quality product and service, because this is for security system, can check video before purchase.

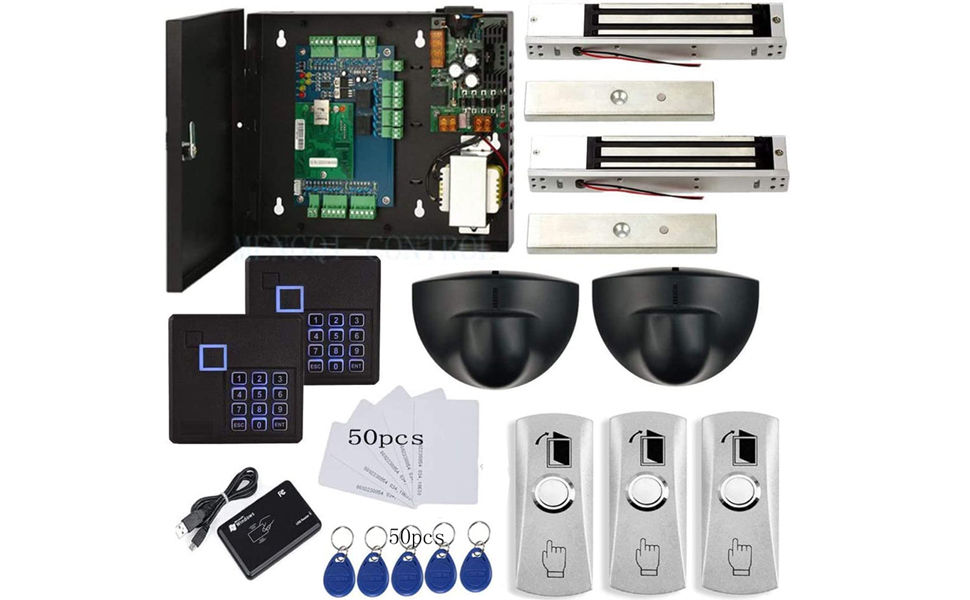

Package include:

1 pc Power supply Box( 110-240V input, 5A output, to power the whole system, also as cabinet for above control board )

1 pc 2 Doors Network Access Control Panel

2 pcs Electric Magnetic Lock(600lb Force)

2 pcs RFID Keypad/PIN Pad Reader( support swipe or PIN or card+PIN )

2 pcs Exit Motion Sensor

3pcs Metal Push to Exit Button(Surface mount with install base, easy install.)

1 pc USB Enroll Reader

50 pcs RFID Cards

50 pcs RFID Key Fobs

1pc English User Manual+Software+Video+Wire Diagram CD Disk
Basic funtion: swipe card/key fob, input PIN code or use card + PIN to open door.

Easily add/delete/activate/disable the user open privilege by professional management software.

Support phone app to open door locally or remotely.

Can be used for high security area, the control board as master unit is put inside room.

Can check/download/export the detail history entrance record.

Allow access for certain door at certain time for different users.

Can keep door auto open during business hour and then auto close at set time, support holiday security control.

Can swipe certain times to keep open and swipe certain times to close door.

Can be used for user attendance check also.

A lot other features such as anti-pass back, 1st card open, multi-card open .etc.
Control 2 doors,get in by swipe card/key fob, input PIN code or use card + PIN, and get out door by exit button or motion sensor.

Door controlled : 2

Support 2 readers.

Control of user capacity up to 20,000 user / up to 100,000 history records.

Network communication via TCP/IP.

Application software support win7/win8/win10 32bit and 64 bit, not support MAC.

Support web interface(no advanced control, can add/delete user and check records .etc. basic function).

Support phone app to open door even you are not there.
Lock body size: 9.84L x 1.89W x 0.98H(inch); Plate size: 7.09L x 1.50W x 0.47H(inch)

It is a high-performance 600lbs holding force electric magnetic lock which suit for many access control system.

NC mode(Locked while supplied with power).

Performance testing: 1000000 times aging test.

Suitable for :wooden door, metal door, etc.

Safety function: built-in voltage spike suppressor

Anti residual magnesium designed.
Reading range: 3-15 cm.Built-in LED and loud speaker (buzzer)

Supports card, PIN, card + PIN,work together with the control board.

Size: 86*86*18 mm/ 3-3/8" (W) x 3-3/8"(H) x 3/4" (D) inch

RFID reader support Wiegand 26/34 bit.It can read EM 125khz RFID cards/key fobs.
When walk close to door, it will detect person and trigger to open lock automatically.

High-sensitivity, quick and accurate response.

Specially apply in commercial, industrial and demanding of automatic access area.

Technology:24G Microwave abd microprocessor

Max mounting height:3-4M

Detection Area:4m(W)x2m(D)

Detection mode: Movement
Push to exit, metal case with base, easy install and surface mount install.

Made of high quality zinc alloy , safe and durable.

Looks simple, comfortable and beautiful.

Through 50000 times test by continuous, very durable.

Manufacturer	‎SecureControl
Part Number	‎2door-board-em motion keypad
Item Weight	‎2 pounds
Package Dimensions	‎10.43 x 9.96 x 8.39 inches
Is Discontinued By Manufacturer	‎No
Color	‎White
Power Source	‎AC
Voltage	‎110 Volts
Item Package Quantity	‎1
Batteries Included?	‎No
Batteries Required?	‎No

Magnetic Lock Exit Motion Sensor 2 Doors TCP/IP Access Control System Kit

Details

What the system can do:

Power Supply Box:

2 Doors Network Access Control Panel:

Electromagnetic Lock:

Keypad Reader:

Exit Motion Sensor:

Metal Push to Exit Button:
